ECNC 8040 BT40 ATC

VERTICAL MACHINE CENTER

Wet Processing

Dry
Milling
Temperature Control
BT30/40 Spindle

Vacuum Table

Touch Screen

4th Axis

Servo Motor Upgrade

ECNC 8040 BT

HIGHLIGHTS

Mach 3 Control Icon
MACH-3 CONTROL

Mach-3 interactive
User friendly control

Cast Iron Icon
CAST IRON CHASSIS

Optimum rigidity
Minimum noise and vibrations

High quality comp. Icon
HIGH-QUALITY COMPONENTS

Leading linear and
bearing components

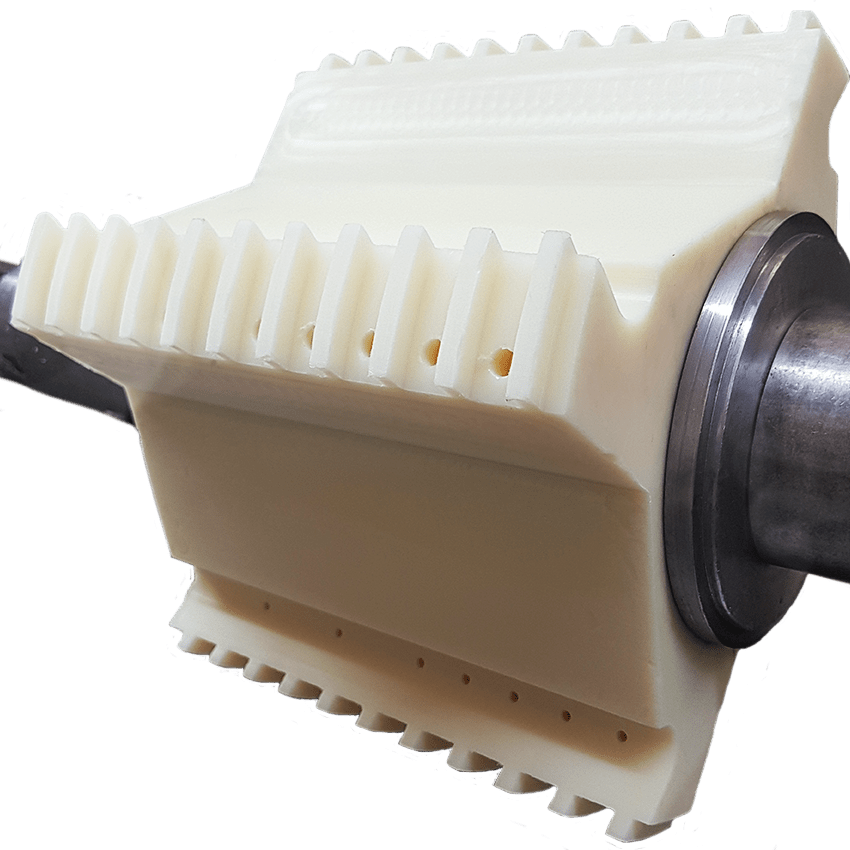

4th Axle Icon
4 AXIS SIMULTANEOUS
MACHINING

High-precision
4-axis rotary

Water cooled Icon
WATER
COOLED SPINDLE

4.0 kw – 3P Async. Motor
5.5 kW – Servo Motor
7 – 10 – 24 k.RPM High Speed Spindle

24-7 Icon
DURABLE
AROUND THE CLOCK

Non-stop productivity
without compromising quality

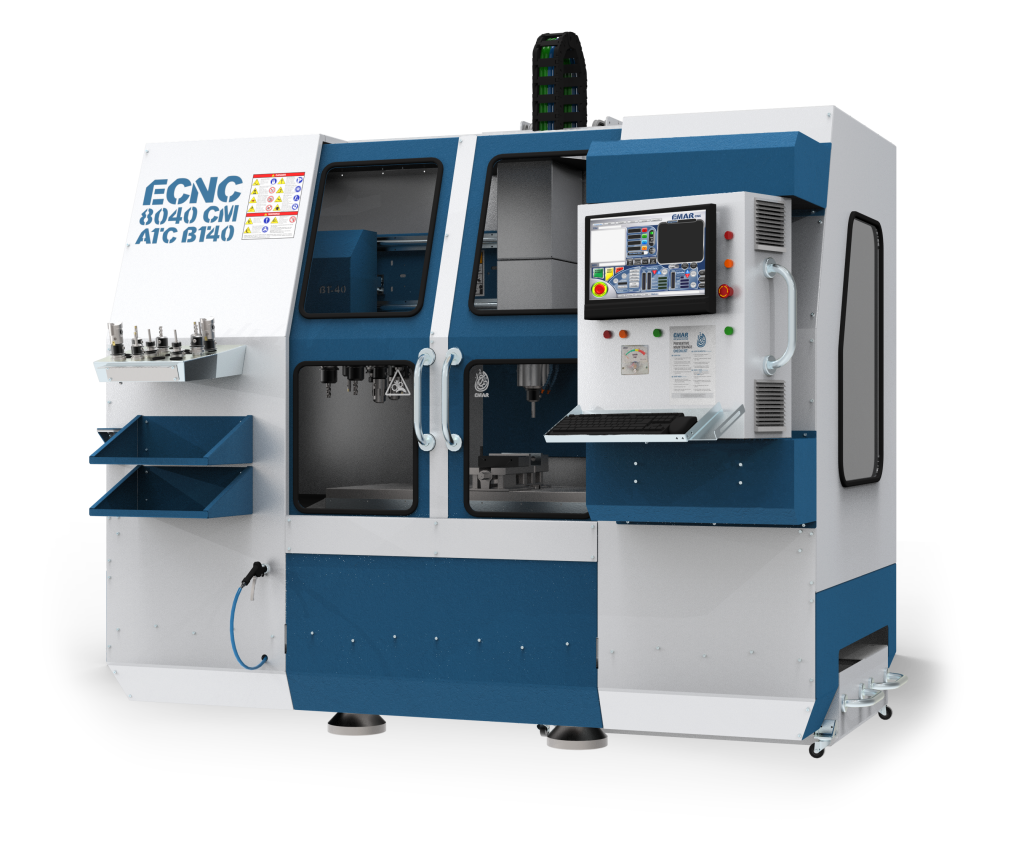

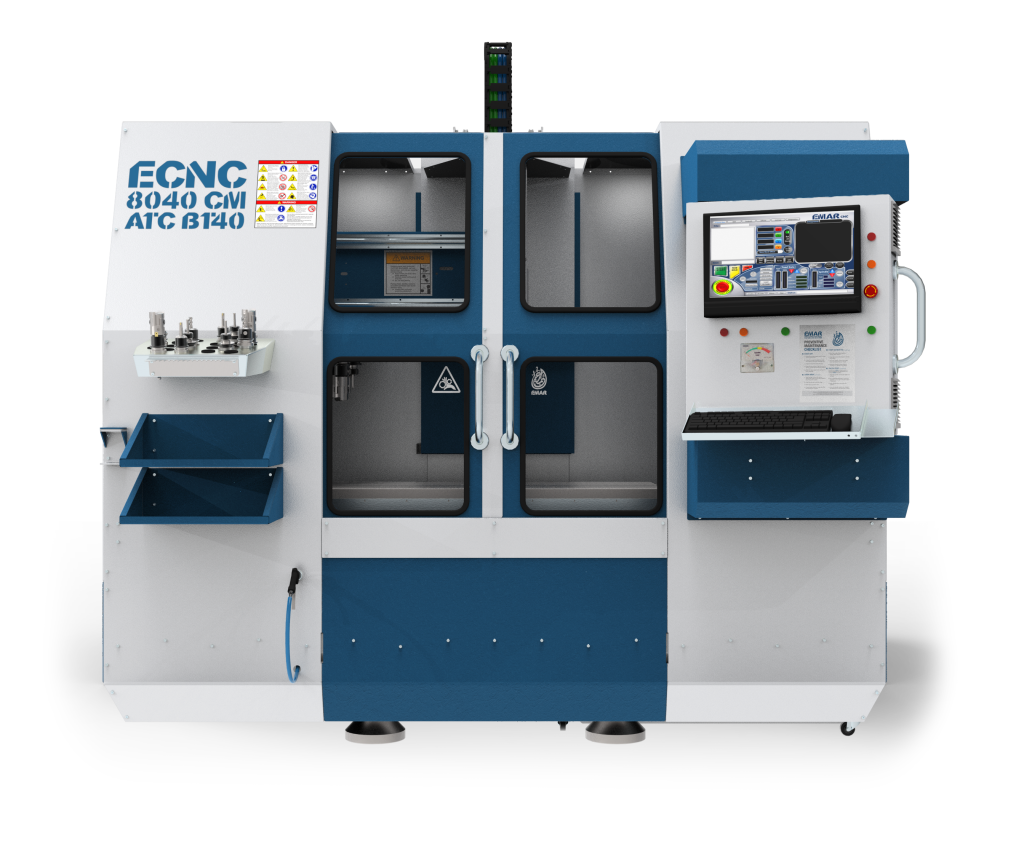

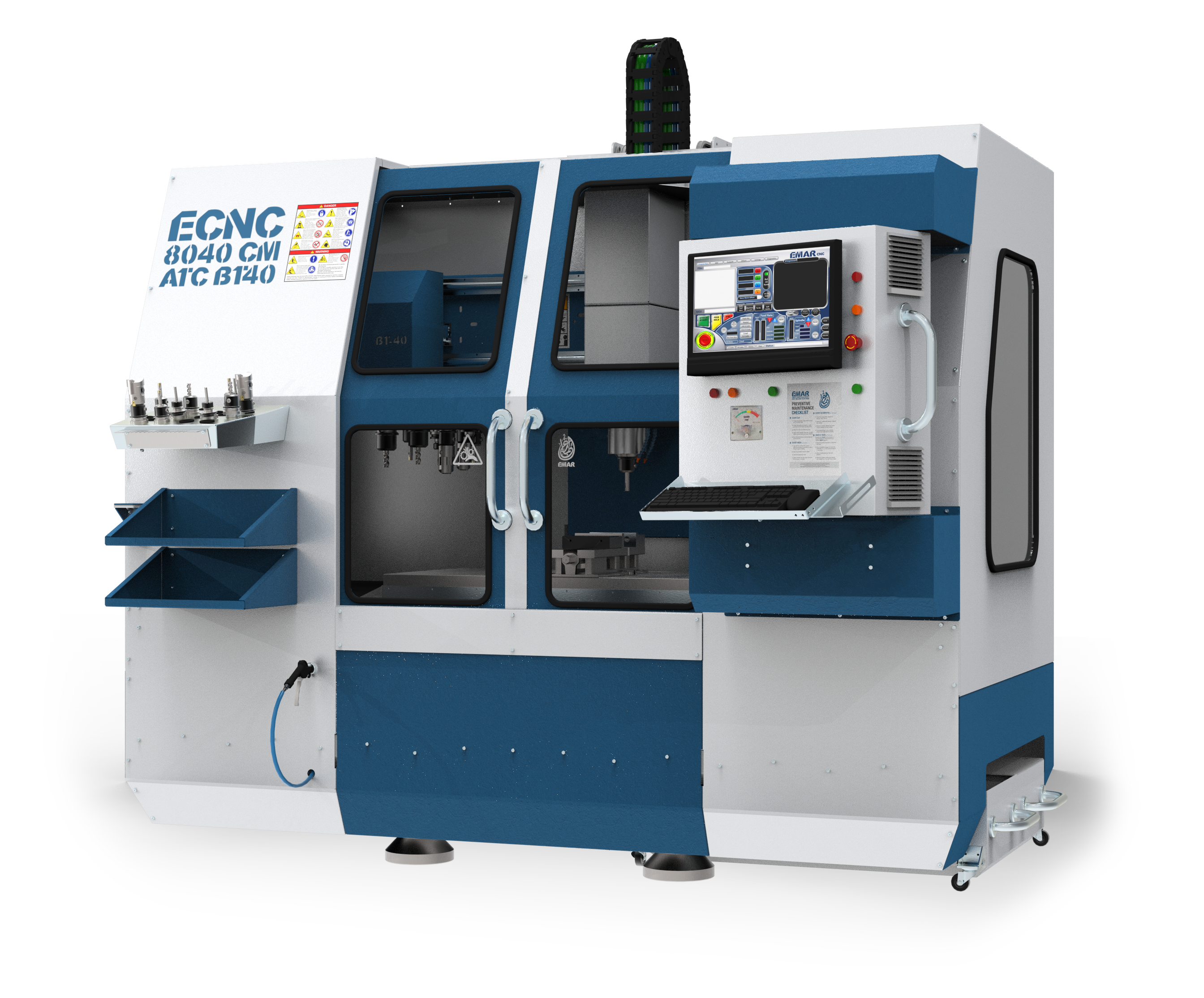

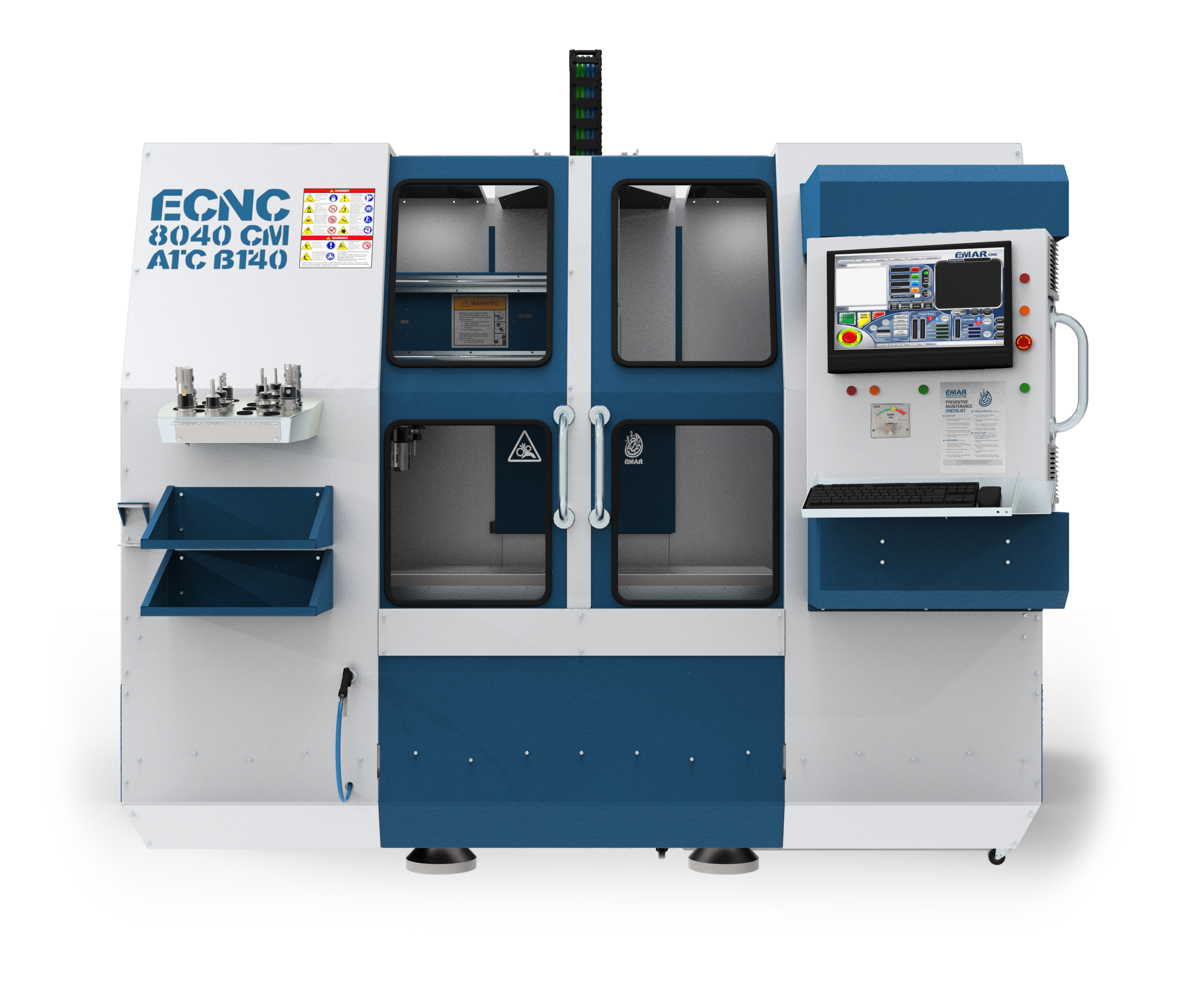

ECNC 8040 CM BT40 ATC

VERTICAL MACHINE CENTER

EMAR Mills are equipped with high-quality industrial milling parts and components, from liner guides, ball screws, high speed spindles, servo & stepper motors, drivers and bearings to cast iron chassis and even electrostatic paint. Without compromising quality, this machine is unmatched in its price range.

The ECNC 8040 BT components are designed for precision, longevity and with variety of options and accessories, which enables you to operate the machine in various applications without further adjustments or installations. EMAR Vertical machine centers will allow you to work at full capacity around the clock, while maintaining consistent high precision without limitations.

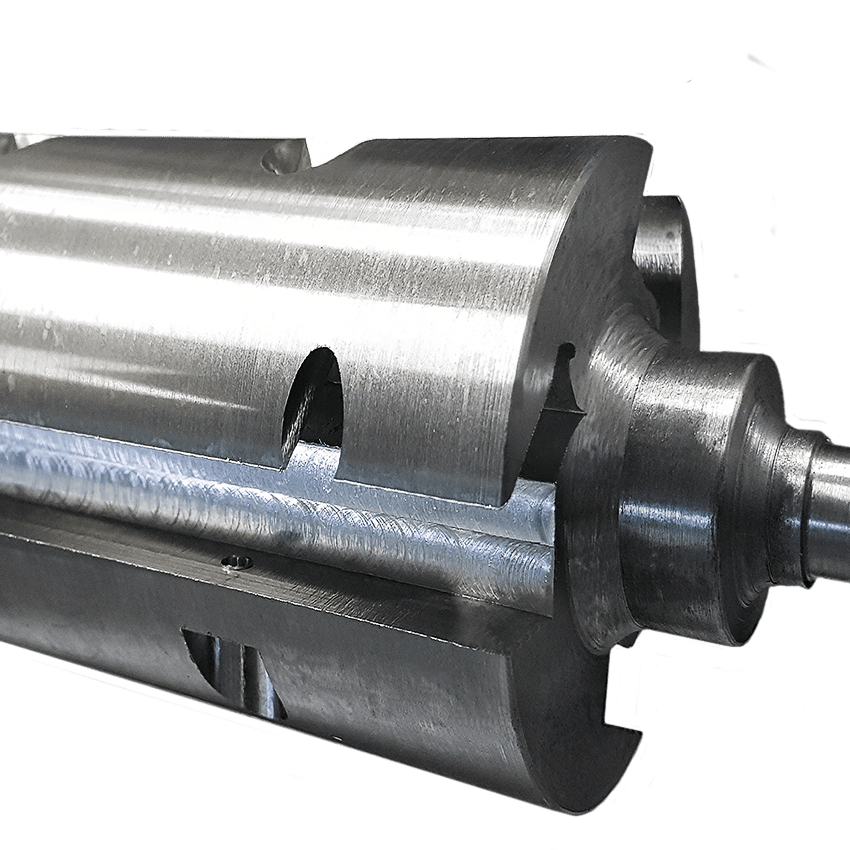

EMAR’s 4-Axis simultaneous rotary can produce complex work pieces with high precision and without the need for further rework. ECNC 8040 BT offers you a very high equipment flexibility with low cost of ownership making it without doubt your ideal choice for good price – performance ratio.

ECNC 8040 BT40 ATC

SPECIFICATIONS



Dimensions (W x D x H)

2500x1950x2300 mm

Guides and bearings

HIWIN/TPI

Table size

1200 x 550 mm

Motors and drivers:

Closed Loop Hybrid Stepper Servo Motors

Axis travel (X,Y,Z)

800 x 400 x 450 mm

High performance poly-phaser stepper motors

Spindle nose-table distance

125 – 525 mm

Lead Shine Micro stepping Driver

Number of axes

3 – 4 – 5

Suitable for

Dry machining / Wet processing

Max tool diameter

40 mm Holder

Millable materials:

All soft / hard metals

Spindle type

 BT40

Stainless, Titanium, Hardened Steel,

Pmax ~ speed Max.

7.5 kW 12,000 rpm

Cast Iron, Aluminum, Brass, Copper

Table type / Max load

T-Slot bed / 300 kg

Applications:

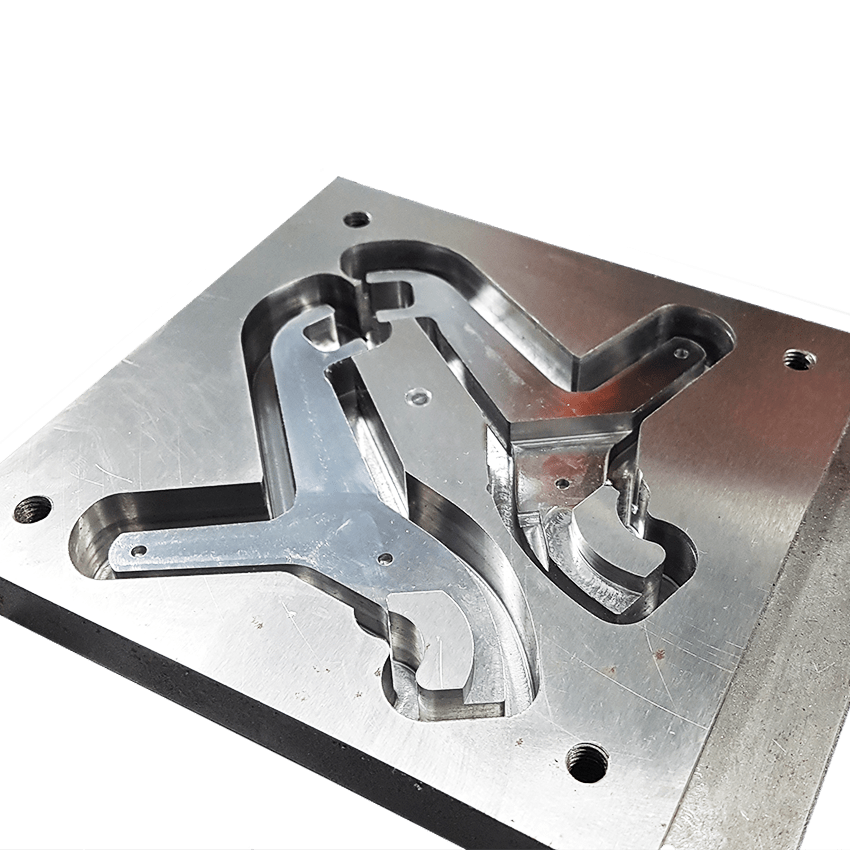

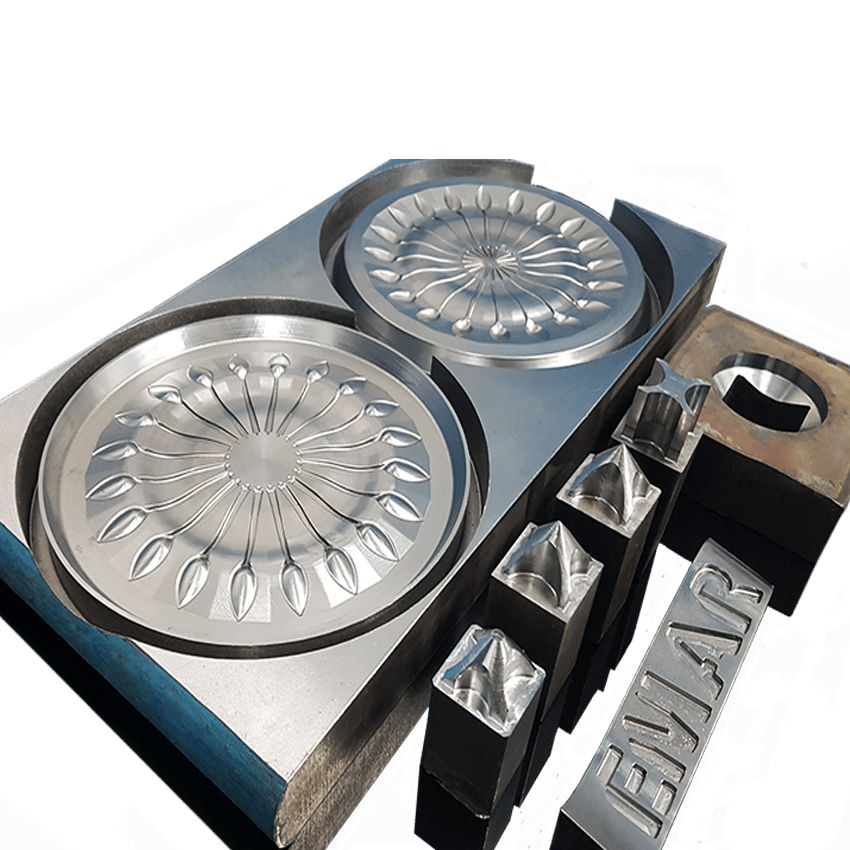

Plastic injection mold dies,

Control

Mach-3

Sheet metal/Thermoforming mold dies,

Chassis

Cast-iron chassis

 Blow mold dies, Footwear mold dies,

Weight

4000 kg

 Machine parts, High-precision drilling
