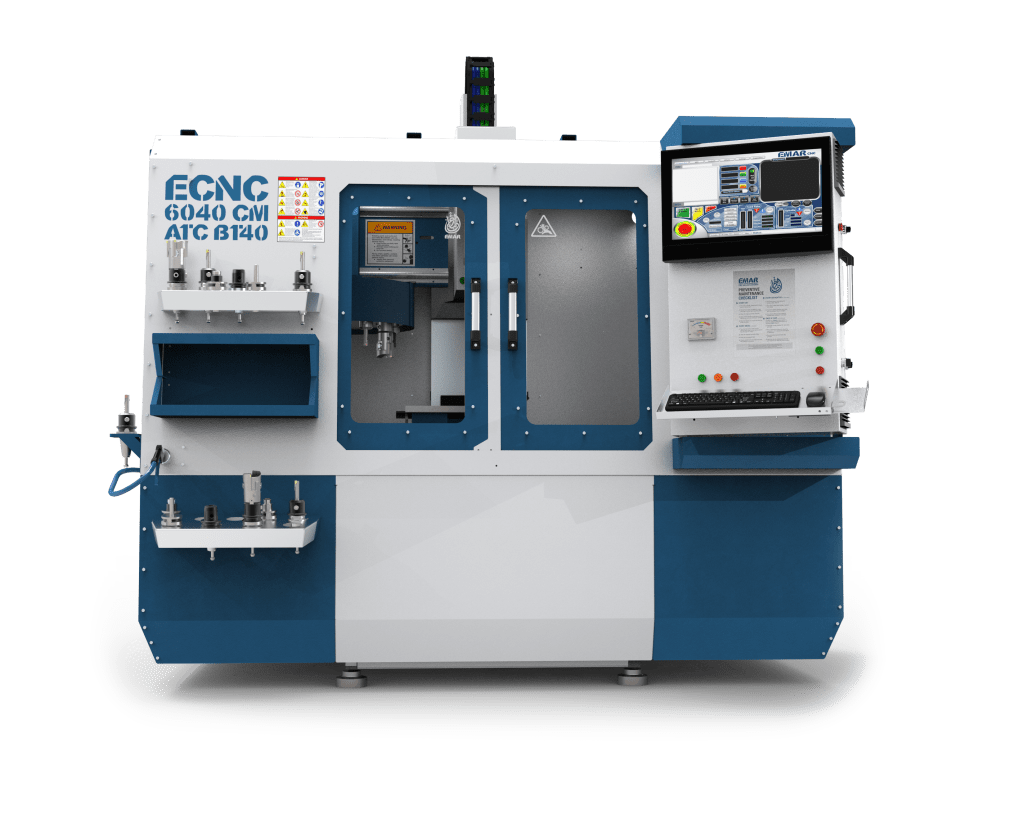

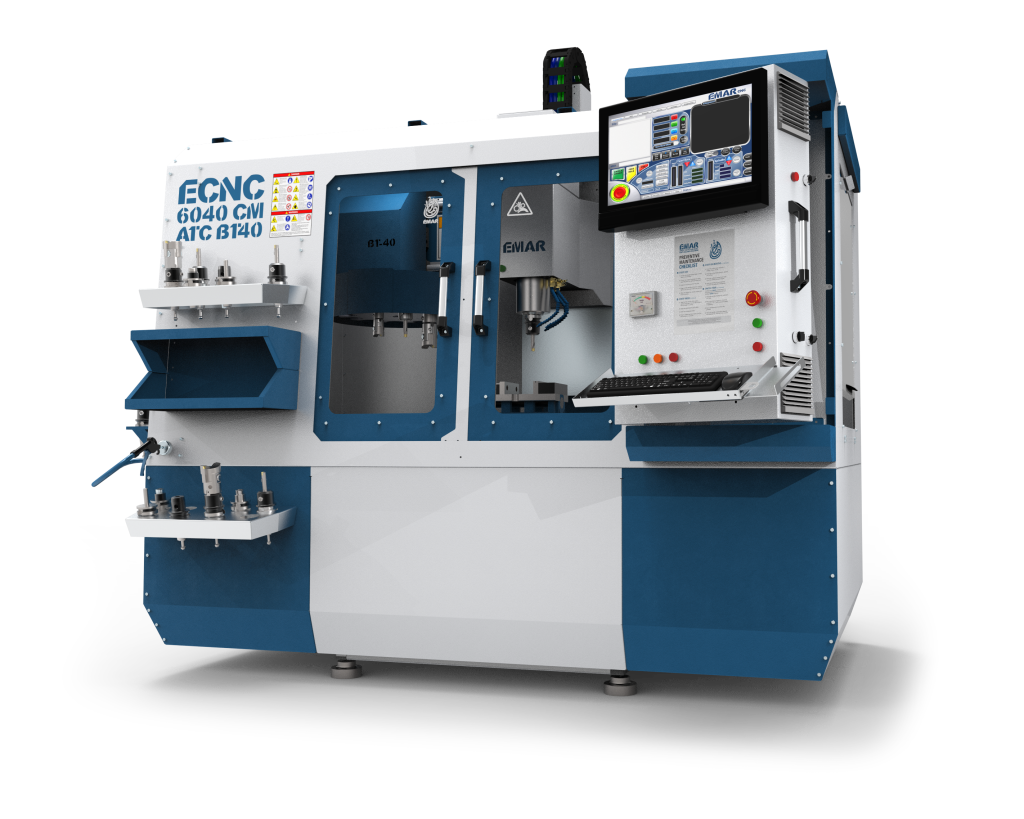

ECNC 6040 CM BT40 ATC

ALL METALS MILLING MACHINE
[/vc_row_inner]

Wet Processing

Dry
Milling
Temperature Control
12mm Max Dia

Vacuum Table

Touch Screen

4th Axis

Servo Motor Upgrade

ECNC 6040 CM

HIGHLIGHTS

Mach 3 Control Icon
MACH-3 CONTROL

Mach-3 interactive
User friendly control

Cast Iron Icon
CAST IRON CHASSIS

Optimum rigidity
Minimum noise and vibrations

High quality comp. Icon
HIGH-QUALITY COMPONENTS

Leading linear and
bearing components

4th Axle Icon
4 AXIS SIMULTANEOUS
MACHINING

High-precision
4-axis rotary

Water cooled Icon
WATER
COOLED SPINDLE

5.5 kW 24k.RPM high speed spindle
for precise results with optimum finish

24-7 Icon
DURABLE
AROUND THE CLOCK

Non-stop productivity
without compromising quality

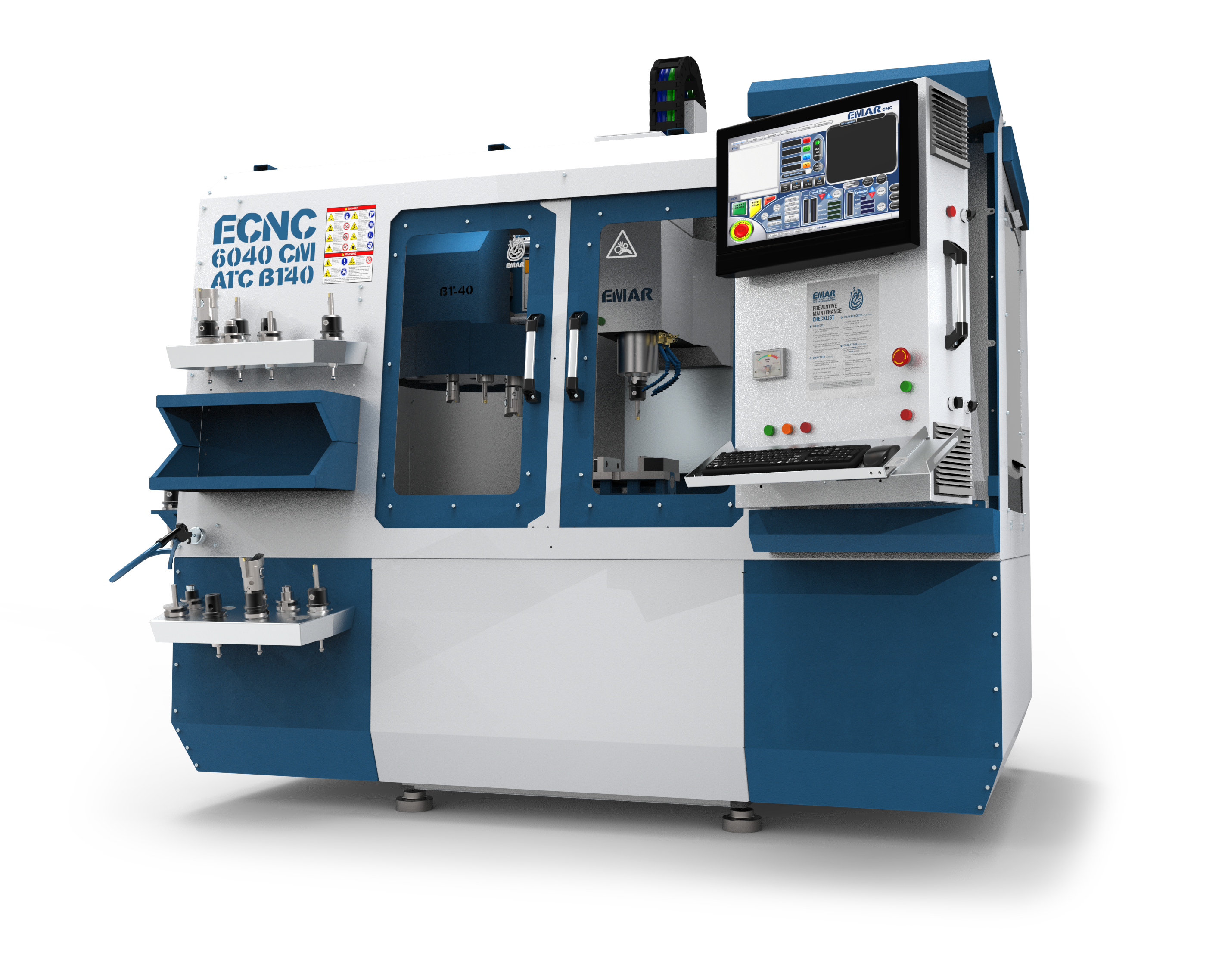

ECNC 6040 CM BT40 ATC

HARD-METAL MILLS

EMAR Mills are equipped with high-quality industrial milling parts and components, from liner guides, ball screws, high speed spindles, servo & stepper motors, drivers and bearings to cast-iron chassis and even electrostatic paint. Without compromising quality, this machine is unmatched in its price range.

The ECNC 6040 CM components are designed for precision, longevity and with variety of options and accessories, which enables you to operate the machine in various applications without further adjustments or installations. EMAR Hard-Metal mills will allow you to work at full capacity around the clock, while maintaining consistent high precision without limitations.

EMAR’s 4-Axis simultaneous rotary can produce complex work pieces with high precision and without the need for further rework. ECNC 6040 M offers you a very high equipment flexibility with low cost of ownership making it without doubt your ideal choice for good price – performance ratio.

ECNC 6040 CM BT40 ATC

SPECIFICATIONS

Dimensions (W x D x H)

2500x1700x2150 mm

Guides and bearings

HIWIN/TPI

Table size

1150 x 410 mm

Motors and drivers:

Closed Loop Hybrid Stepper Servo Motors

Axis travel (X,Y,Z)

600 x 400 x 400 mm

Spindle nose-table distance

0 – 400mm

Number of axes

3 – 4 – 5

Suitable for

Dry machining / Wet processing

Max tool diameter

40 mm Holder

Millable materials:

All soft / hard metals

Spindle type

BT40

Stainless, Titanium, Hardened Steel,

Pmax ~ speed Max.

7.5 kW 12,000 rpm

Cast Iron, Aluminum, Brass, Copper

Table type / Max load

T-Slot bed / 250 kg

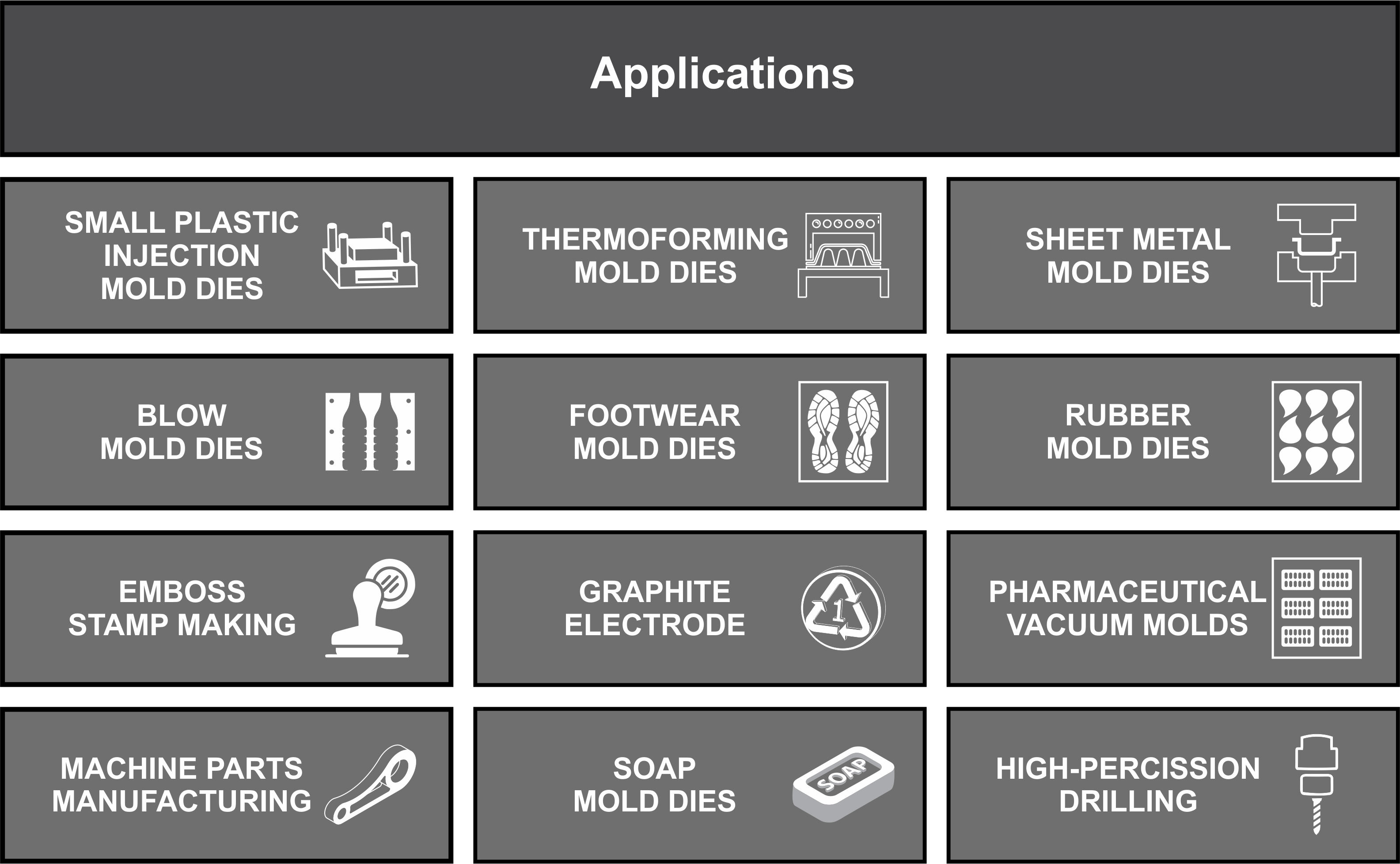

Applications:

Small plastic injection mold dies,

Control

Mach-3

Sheet metal/Thermoforming mold dies,

Chassis

Cast-iron chassis

 Blow mold dies, Footwear mold dies,

Weight

3500 kg

 Machine parts, High-precision drilling
